Standby Syngas Engine Generator Silent 1800 Rpm Generator Set

Product Categories
Jigren Systems Co.,Ltd
Contact Now

Standby Syngas Engine Generator Silent 1800 Rpm Generator Set

MOQ : a set of generator

Price : Negotiable

Delivery Time : 30 work days

Packaging Details : 3125*1200*1850mm, 1750kg for open genset; 4000*1450*1800mm, 3050kg for silent canopy

Product name : Gas Genset

Color : As your requirement

Type : Syngas Generator set

Fuel : Natutal Gas/Biogas/LPG

Fuel type : Syngas

Control panel : Smartgen

Engine type : in line

Cooling method : Water Cooling

Speed : 1500/1800rpm

Frequency : 50HZ/60HZ

Rated power : 10kw-1000kw

Rated voltage : 230/400V

Rated current : as per HZ

Contact Now

150kW Genset of Syngas Generator Sets



Main configuration and features

  1. Highly efficient gas engine
  2. AC synchronous alternator
  3. Gas safety train and gas protection device against leakage
  4. Exhaust and jacket water heat exchanger
  5. Heating water and jacket water circulation system
  6. Expansion tank and water jacket heater
  7. Advanced engine control system, including: ignition system, detonation control system, speed control system, air/fuel ratio control system
  8. Strict shop test for all CHP unit
  9. Industrial silencer reduces the noise by 12-20dB(A)
  10. Unattached switch cabinet and electric control cabinet
  11. Multi-functional control system with easy operation
  12. Data communication interfaces integrated into control system
  13. Lighting and smoke alarm system
  14. Monitoring battery voltage and charging automatically
  15. Auto refilling oil system
  16. Bus interface for connecting to higher level control unit



Model Efficiency Fuel Type Engine Model Alternator Genset Controller
Elec. Thermal Total Manufacturer Model Manufacturer Model
JIG150N-S 37.0% 51.1% 88.1% Natural Gas U28536N Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150N-T 37.3% 50.3% 87.6% Natural Gas U26306N Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150B-T 36.0% 50.8% 86.8% Biogas U26556B Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150S-S 35.1% 50.1% 85.2% Syngas U35656S Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150P-T 34.2% 50.8% 85.0% LPG U26556P Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150N6-S 37.0% 51.1% 88.1% Natural Gas U28536N Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150N6-T 37.3% 50.3% 87.6% Natural Gas U26306N Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150B6-T 36.0% 50.8% 86.8% Biogas U26556B Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150S6-S 35.1% 50.1% 85.2% Syngas U35656S Mecc Alte ECO38 3S4 A SmartGen HGM 9510
JIG150P6-T 34.2% 50.8% 85.0% LPG U26556P Mecc Alte ECO38 3S4 A SmartGen HGM 9510





Genset Model JIG150N-S JIG150N-T JIG150B-T JIG150S-S JIG150P-T JIG150N6-S JIG150N6-T JIG150B6-T JIG150S6-S JIG150P6-T
Prime Rating kW 150 150 150 150 150 150 150 150 150 150
KVA 187.5 187.5 187.5 187.5 187.5 187.5 187.5 187.5 187.5 187.5
Standby Power kW 165 165 165 165 165 165 165 165 165 165
KVA 206.25 206.25 206.25 206.25 206.25 206.25 206.25 206.25 206.25 206.25
Rated Voltage V 230/400 230/400 230/400 230/400 230/400 230/400 230/400 230/400 230/400 230/400
Rated Current A 270.6 270.6 270.6 270.6 270.6 270.6 270.6 270.6 270.6 270.6
Power Factor - 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Rated Frequency Hz 50 50 50 50 50 60 60 60 60 60
Rated Speed rpm 1500 1500 1500 1500 1500 1800 1800 1800 1800 1800

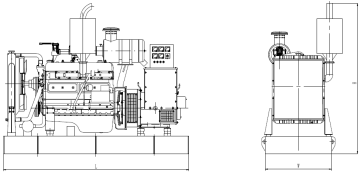

Spec Dimensions (Open)
(L × W × H)		 mm 3125×1200×1850 Standby Syngas Engine Generator Silent 1800 Rpm Generator Set
Net Weight (Open) kg 1750

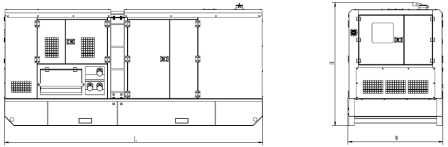

Dimensions
(Silent Canopy)
(L × W × H)		 mm 4000×1450×1800 Standby Syngas Engine Generator Silent 1800 Rpm Generator Set
Net Weight
(Silent Canopy)		 kg 3050
