500kW Water Cooling System 1500rpm Gas Generator Set

Product Categories
Jigren Systems Co.,Ltd
Contact Now

500kW Water Cooling System 1500rpm Gas Generator Set

MOQ : a set of generator

Price : Negotiable

Delivery Time : 30 work days

Packaging Details : 5200*1600*2010mm, 5750kg for open genset; 6058*2438*2591mm, 4000kg for silent canopy

Product name : Gas Genset

Color : As your requirement

Type : Natural Gas Generator set

Fuel : Natutal Gas/Biogas/LPG

Fuel type : Syngas

Control panel : Smartgen

Engine type : in line

Cooling method : Water Cooling

Speed : 1500/1800rpm

Frequency : 50HZ/60HZ

Rated power : 10kw-1000kw

Rated voltage : 230/400V

Rated current : as per HZ

Contact Now

500kW Water Cooling System 1500rpm Gas Generator Set

500kW Genset of Gas Generator Sets


Special statements

  1. The technical data are based on a gas mixture of 60% methane and 40% carbon dioxid with a calorific value of 60 kWh/Nm³ and a methane no. > 100
  2. The technical data is measured in standard conditions: Absolute atmospheric pressure:100kPa Ambient temperature:25°C Relative air humidity:30%
  3. Rating adaptation at ambient conditions acc to DIN ISO 3046/1. The tolerance for the specific fuel consumption is + 5 % at rated output.
  4. Dimension and weight above are just for standard product ,and may be subject to change. As this document is used only for presale reference, take the specification supplied by JIGREN before

500kW Water Cooling System 1500rpm Gas Generator Set


ModelEfficiencyFuel TypeEngine ModelAlternatorGenset Controller
Elec.ThermalTotalManufacturerModelManufacturerModel
JIG500N-M40.2%46.0%86.2%Natural GasU32572NMecc AlteECO40 2L4 BSmartGenHGM 9520
JIG500N-Y35.3%48.4%83.7%Natural GasU00106NMecc AlteECO40 2L4 BSmartGenHGM 9520
JIG500N-V35.0%48.6%83.6%Natural GasU90102NMecc AlteECO40 2L4 BSmartGenHGM 9520
JIG500B-M39.6%47.3%86.9%BiogasU32572NMecc AlteECO40 2L4 BSmartGenHGM 9520
JIG500B-V34.5%48.8%83.3%BiogasU90102NMecc AlteECO40 2L4 BSmartGenHGM 9520
JIG500N6-M40.2%46.0%86.2%Natural GasU32572NMecc AlteECO40 2L4 BSmartGenHGM 9520
JIG500N6-Y35.3%48.4%83.7%Natural GasU00106NMecc AlteECO40 2L4 BSmartGenHGM 9520
JIG500N6-V35.0%48.6%83.6%Natural GasU90102NMecc AlteECO40 2L4 BSmartGenHGM 9520
JIG500B6-M39.6%47.3%86.9%BiogasU32572NMecc AlteECO40 2L4 BSmartGenHGM 9520
JIG500B6-V34.5%48.8%83.3%BiogasU90102NMecc AlteECO40 2L4 BSmartGenHGM 9520



500kW Water Cooling System 1500rpm Gas Generator Set


Genset ModelJIG500N-MJIG500N-YJIG500N-VJIG500B-MJIG500B-VJIG500N6-MJIG500N6-YJIG500N6-VJIG500B6-MJIG500B6-V
Prime RatingkW500500500500500500500500500500
KVA625625625625625625625625625625
Standby PowerkW550550550550550550550550550550
KVA687.5687.5687.5687.5687.5687.5687.5687.5687.5687.5
Rated VoltageV230/400230/400230/400230/400230/400230/400230/400230/400230/400230/400
Rated CurrentA902.1902.1902.1902.1902.1902.1902.1902.1902.1902.1
Power Factor-0.80.80.80.80.80.80.80.80.80.8
Rated FrequencyHz50505050506060606060
Rated Speedrpm1500150010001500100018001800120018001200


500kW Water Cooling System 1500rpm Gas Generator Set

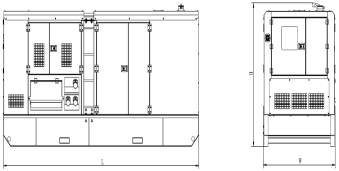

SpecDimensions (Open)
(L × W × H)		mm5200×1600×2010500kW Water Cooling System 1500rpm Gas Generator Set
Net Weight (Open)kg5750
Dimensions
(Silent Canopy)
(L × W × H)		mm6058×2438×2591500kW Water Cooling System 1500rpm Gas Generator Set
Net Weight
(Silent Canopy)		kg4000
